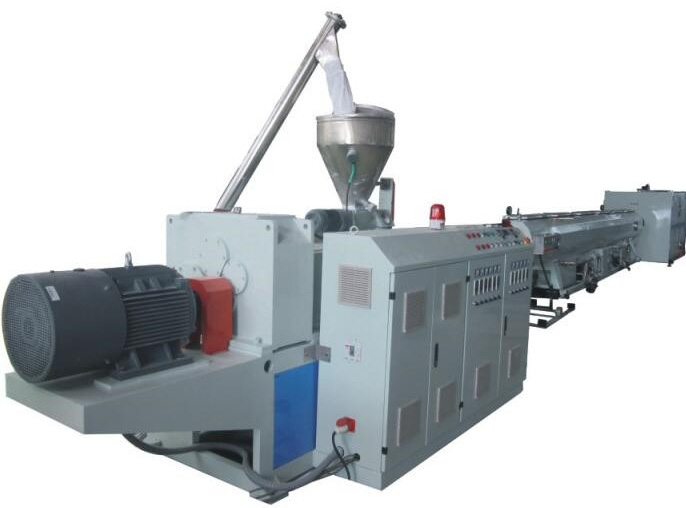

The production line consists of conical twin screw extruder, vacuum tank, haul-off, cutting unit. Main features: High output, power consumption low, water consumption low, ground cover small, labour cost low, noise low, dust less, etc.
Specified screw design for better material plasticizing＆mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.
More stable and reliable hauling, no deformation, mufti-caterpillar structure of haul-off unit, suitable for different size range.
Planetary cutting with chamfer function for stable＆reliable cutting and precise length-counting.
| Model | Pipe range/mm | Capacity kg/h | Maximumlinear velocity（m/min） | Mainmotor power /kw | Total length/m |
| SJSZ-65/132 | 50-110 |
120-250 120-250 |
6 |
37 37 |
22 |
| SJSZ-80/156 | 110-250 |
250-400 250-400 |
5 |
75 75 |
23 |
| SJSZ-92/188 | 315-630 |
400-700 400-700 |
1.5 |
110 110 |
32 |
| Model | Pipe Diameter | Output | Max Speed | Motor | Total Length |
| SJSZ-65/132 | 50-75mm | 250-350 kg/h | 6m/min*2 | 30kw | 22m |
| SJSZ-80/156 | 50-110mm | 500-750kg/h | 8m/min*2 | 55kw | 23m |
| Model | Pipe Diameter | Output | Max Speed | Motor Power | Total Length |
| SJSZ-65/132 | 16-32mm | 250-350kg/h | 15m/min*4 | 30kw | 17m |
